Will any 7/8-inch brake lever fit a mini bike?
No. A 7/8-inch (about 22 mm) clamp tells you the lever can fit a common handlebar diameter, but it does not guarantee the cable, cable end, adjuster, lever pull or caliper will match. A safe fit requires the whole cable-operated brake system to work together.

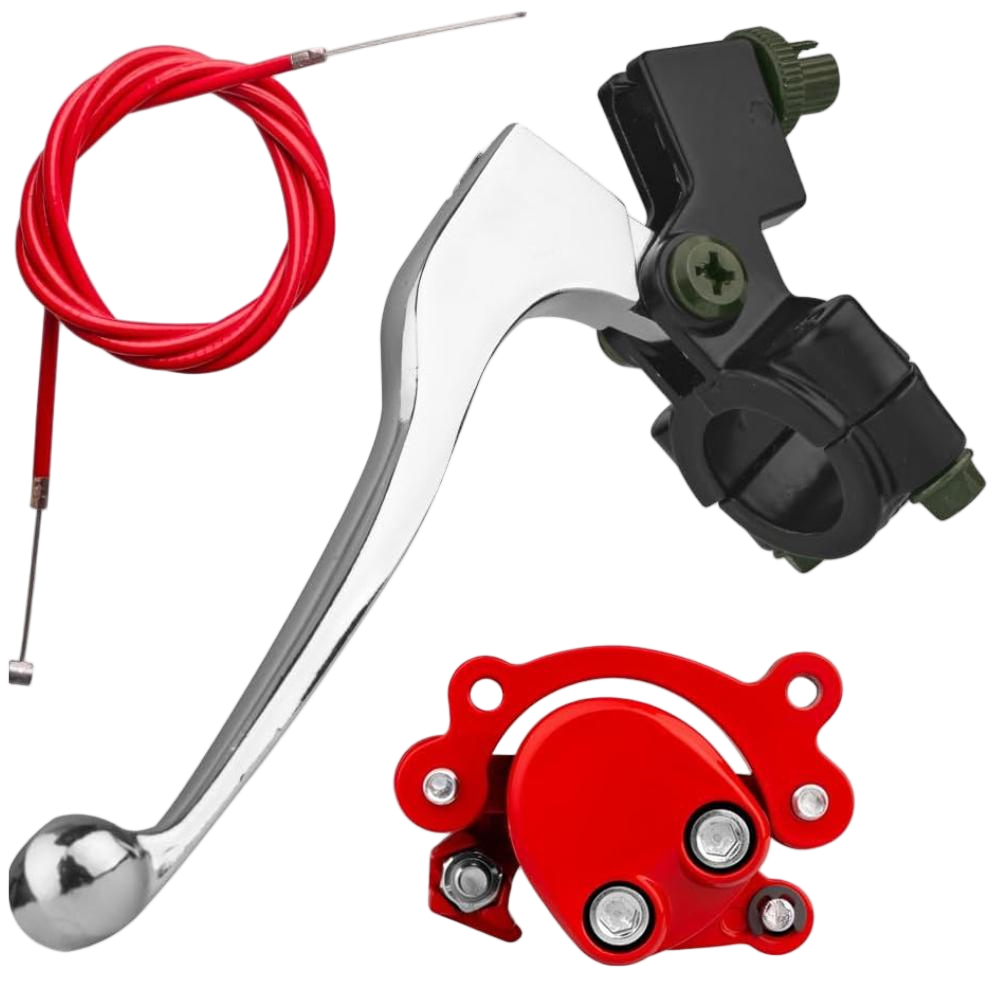

The Parker Pro kit combines an aluminum lever, matched brake cable and caliper, which removes some of the mix-and-match uncertainty. It is intended for standard 7/8-inch handlebar cable-actuated systems. You still need to verify bar space, mounting path and the caliper's connection to your bike.
What should you measure before buying a brake lever kit?
| Check | How to verify | Why it matters |
|---|---|---|
| Handlebar diameter | Measure the control area, not the center clamp area | The lever perch must clamp securely |
| Available bar space | Measure between grip, throttle and switches | Controls must not interfere |
| Cable length | Follow the intended route with steering turned both ways | A tight cable can apply the brake unintentionally |
| Cable ends and adjuster | Compare shape, barrel and thread | The cable must seat fully at both ends |
| Caliper mounting and travel | Compare bracket, rotor/drum path and pull direction | The brake must engage and release correctly |
How do you measure a 7/8-inch handlebar?
Use a caliper across the outside of the straight control area where the lever will clamp. Do not measure the thicker center section near the stem, and do not assume the grip's outside diameter equals the steel or aluminum bar beneath it. A standard 7/8-inch control area measures about 22 mm.
Also measure usable width. The lever perch should sit on straight bar material and allow the lever to move without hitting the throttle housing, switch, grip or bodywork.
How do you install and adjust a cable brake lever?
- Support the bike securely with the engine off.
- Position the perch where the rider can reach it without rotating the wrist unnaturally.
- Route the cable in wide curves with no kinks, heat contact or moving-part contact.
- Seat both cable ends fully and set initial tension with the adjuster.
- Confirm the caliper applies firmly and returns completely when the lever is released.
- Turn the handlebar fully left and right; brake engagement must not change.
- Perform a walking-speed brake test before normal riding.
Brake free play is not one universal number for every system. Use the bike or brake manufacturer's procedure. The important functional test is that the brake engages predictably, releases fully and does not drag when the controls move.
When should a mini bike brake lever or cable be replaced?
Replace damaged parts when the lever is cracked or badly bent, the pivot is loose, the cable is frayed or kinked, the housing is split, or the adjuster cannot hold its setting. A hard lever with weak braking may indicate a seized cable or caliper; a lever that pulls to the grip may indicate excessive slack, worn parts or a mismatch.
Do not straighten a cracked aluminum lever for continued use. Do not lubricate brake friction surfaces, and keep cable lubricants away from the rotor, drum, pads and shoes.
Mini bike brake lever FAQ
Is 7/8 inch the same as 22 mm?
They are commonly used as equivalent control-area descriptions. Measure the actual bar because paint, sleeves or nonstandard bars can change the clamp fit.
Can I use a bicycle brake lever on a mini bike?
Do not assume it will match. Cable pull, end shape, strength and caliper requirements can differ. Use a lever and cable specified for the brake system.
Why does the brake drag when I turn the handlebar?
The cable may be too short, routed tightly or pinched. Correct the route and length before riding.
Does “universal” mean no measurements are needed?
No. It means the kit targets a common standard. Handlebar, cable route and caliper mounting still need confirmation.
