Can you replace a 12-inch dirt bike rear wheel with a 14-inch wheel?
Only when the complete fitment works. Rim diameter is not enough. You must match the axle diameter, hub spacing, brake rotor position, sprocket chain line, tire and swingarm clearance, and brake-caliper alignment. A larger wheel may physically enter the swingarm and still be unusable because the axle or drivetrain does not line up.

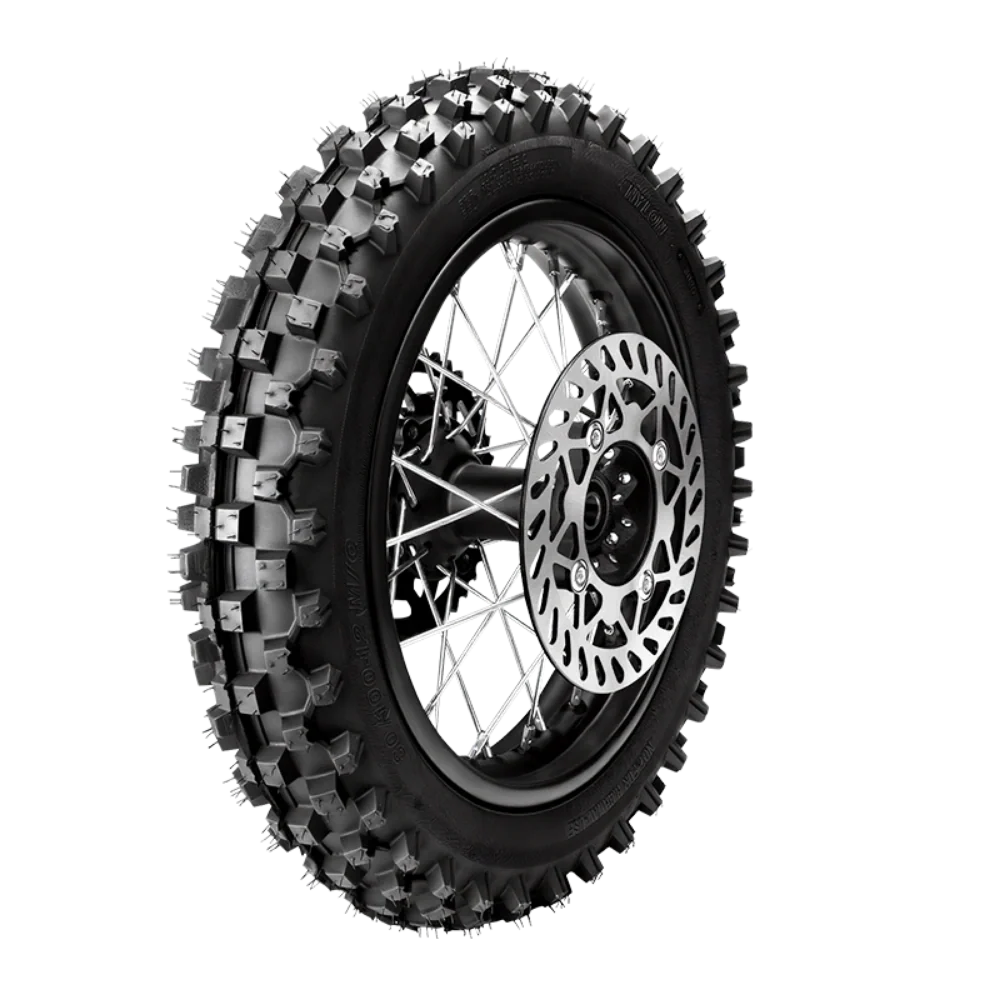

The Parker Pro rear assemblies publish a key distinction: the 12-inch wheel uses a 12 mm axle, while the 14-inch wheel uses a 15 mm axle. Both include a 180 mm vented brake rotor and a 428/41T sprocket. Those numbers make the product easy to compare with the bike you own.
What measurements decide rear-wheel fitment?
| Measurement | Why it matters | Parker Pro reference |
|---|---|---|
| Rim diameter | Changes tire size and bike geometry | 12 in or 14 in |
| Axle diameter | The axle must fit the bearings and swingarm hardware | 12 mm on 12 in; 15 mm on 14 in |
| Hub width and spacers | Centers the wheel and locates rotor/sprocket | Measure the bike and compare |
| Brake rotor | Must align with the caliper and bracket | 180 mm included |
| Chain and sprocket | Pitch and chain line must match | 428 / 41T included |
| Tire clearance | Prevents contact with swingarm, chain and bodywork | Check through full usable travel |
How do you measure a dirt bike rear axle?
Do not estimate from the wrench size of the axle nut. Measure the smooth axle shaft or the bearing's inner diameter with a caliper after safely supporting the bike and removing the wheel. A 12 mm and 15 mm axle are visibly close enough that guessing from a photo can lead to the wrong assembly.
Photograph the spacer order before removal. Measure the inside width of the swingarm at the axle, the installed hub width with spacers, and the distance from the hub centerline to the rotor and sprocket faces. Those offsets decide whether the brake and chain can run straight.
What is the difference between Basic and Max?
Both versions include the tire, upgraded sealed bearings, 180 mm rotor and 428/41T sprocket. The Max package adds an inner tube, portable hand pump and two tire levers. Choose Max when you want the trail-side service items bundled with the wheel; choose Basic when you already have the correct tube and tools.
What should you check after installing a rear wheel?
- The wheel spins without the rotor rubbing or the tire touching the swingarm.
- The sprocket and front drive sprocket share a straight chain line.
- Chain slack is set to the bike manufacturer's specification.
- The brake operates smoothly and the rotor sits fully inside the caliper path.
- Spacers are in their correct positions and the axle hardware is secured correctly.
- Tire pressure follows the tire and bike guidance, not a guess based on wheel size.
Spin-test and brake-test with the bike supported before riding. Then make a low-speed test in a controlled area and recheck the axle, chain and brake.
Dirt bike rear wheel FAQ
Is a 14-inch wheel always faster than a 12-inch wheel?
No. Speed depends on gearing, engine output, tire outside diameter and load. A wheel-size change also alters leverage and geometry, so it should not be treated as a simple speed upgrade.
Can I reuse my old brake caliper?
Only if it aligns with the included 180 mm rotor and the bracket, pad path and hose or cable routing remain correct.
What does 428/41T mean?
428 identifies the chain family and 41T means the rear sprocket has 41 teeth. The chain pitch must match the sprocket.
Why is my chain crooked after a wheel swap?
The wheel may be off-center, spacers may be reversed, or the new sprocket offset may differ. Stop and correct alignment before riding.
